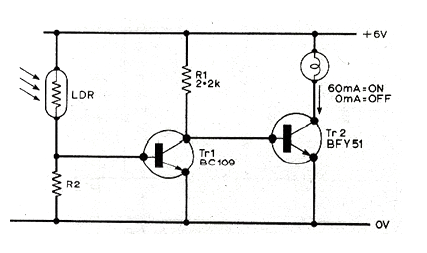

This circuit was obtained from a 1977 magazine, but can still be mounted using BC548 for TR1 and BD135 for TR2. The lamp should be 6 V with or near 60 mA current. R2 should be obtained experimentally having values between 1k and 10k in common applications.
