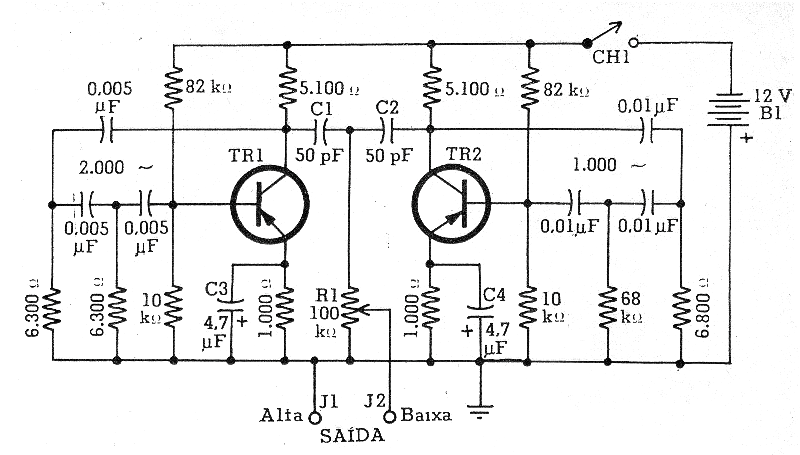

The presented circuit consists of a double phase shift oscillator capable of generating two sine signals for testing audio equipment and others involving sound. The circuit was obtained from a 1968 journal but can be easily assembled using more modern transistors for TR1 and TR2, such as the BC558.
