LT1074 Positive To Negative Converter (CB4398E)

Details
Written by: Newton C. Braga

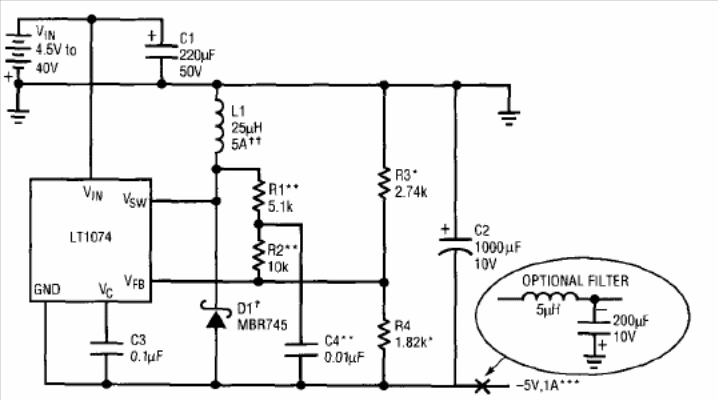

    This circuit provides a 5 V negative output with a maximum current of 1 A. The circuit is from the 1993 Linear Technology Applications and uses common components at the time.
