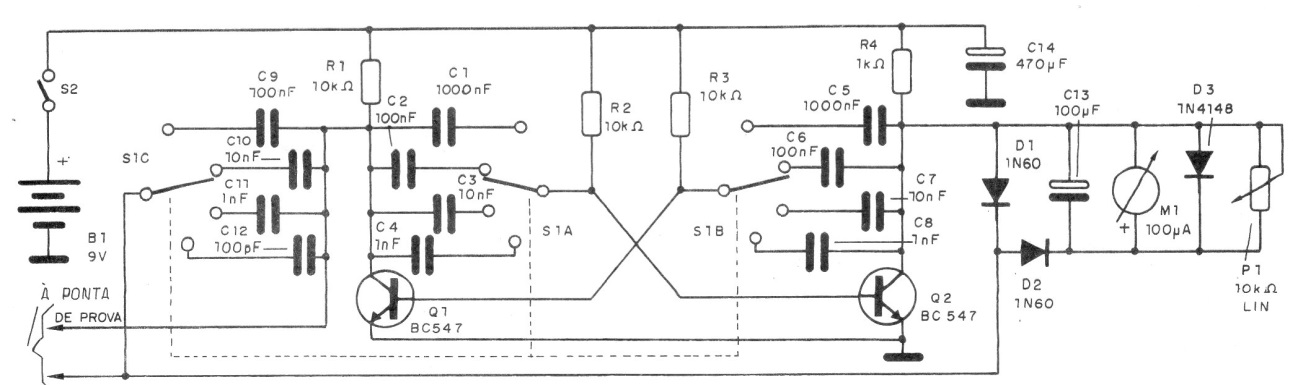

This simple measuring bridge allows the capacitance m of some pF to microfarads to be measured using as a 200 uA full scale (VU type) indicator. The circuit is powered by a 9 V battery and has several ranges. Accuracy depends on the capacitors used in the circuit.


| Clique na imagem para ampliar |





N° of component
