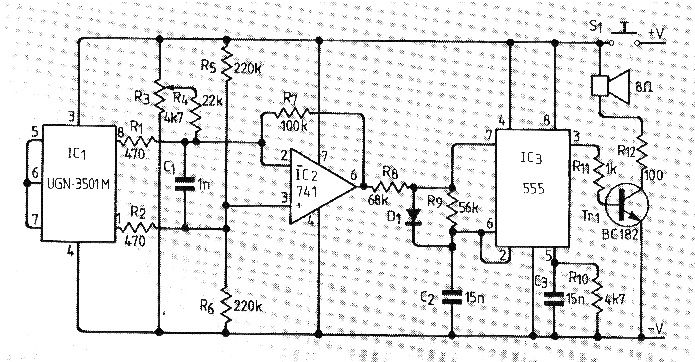

The basic idea of this circuit is to convert the indication of a magnetic sensor to an audio tone that depends on its orientation. The circuit is from a 1990 Wireless World. The circuit is suggested as a help to the blind and its assembly is quite simple depending only on obtaining the sensor, which is the critical component of the project. The transistor can be a BC548.
