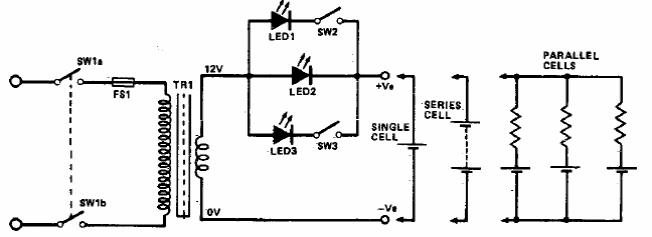

This circuit is from an old American documentation using LEDs in the rectification. The circuit supplies a current of the order of 15 mA to the load. It is a somewhat critical recommendation since the inverse voltage on the LEDs is above the normally recommended. The project should be reviewed.
