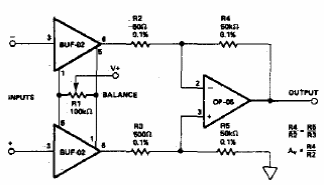

Instrumentation Amplifier with Differential Input (CB4941E)

Details: Written by: Newton C. Braga

The circuit is from an 80's publication. The operational ones used are of the time, and must be powered by symmetrical source. The circuit can be adapted to operate with modern operational ones.
