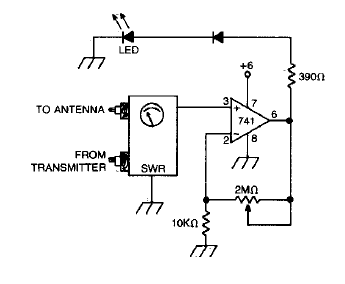

This standing wave alarm (SWR) warns when a high SWR value may mean an overload for the transmitter. The circuit is from an American amateur radio documentation. The operating used is common not requiring symmetrical supply.
SWR Alarm (CB4891E)
- Details
- Written by: Newton C. Braga
