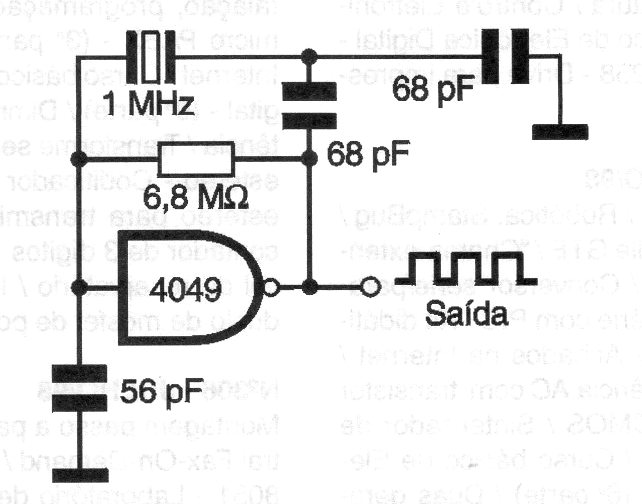

This configuration, found several times on this site and in other articles, can generate frequencies of 1 MHz, depending on the crystal used. The supply voltage can be between 5 and 12 V and the output is rectangular signals.
