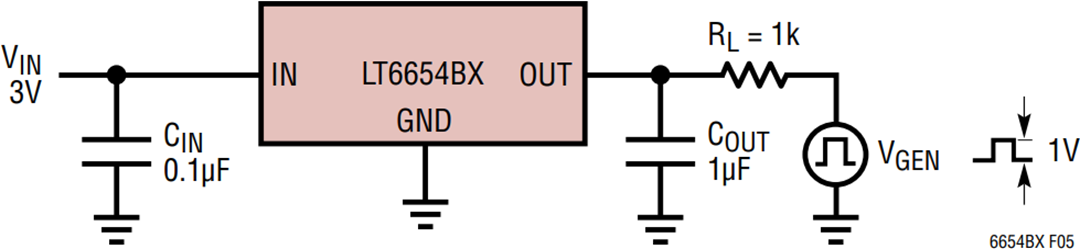

This circuit was found in an Analog Devices manual and can supply a 3 mA current or drain a 10 mA current. The voltage drop is only 120 mV. The input voltage is 3 V. In the indicated version the reference voltage is 2.5 V.
