Tachometer (CB4960E)

Details
Written by: Newton C. Braga

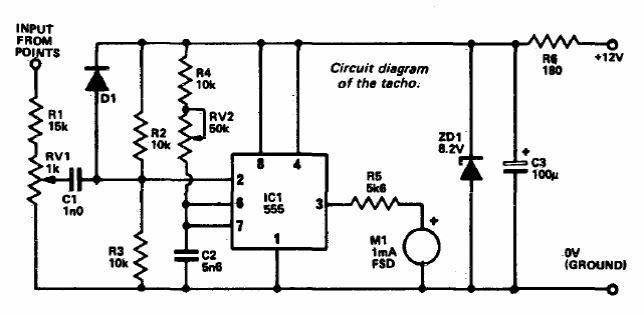

     We found this version of the automotive tachometer in a 1980s publication. Variations from other sources appear elsewhere in this section. The indicator is a 0 to 1 mA milliammeter.
