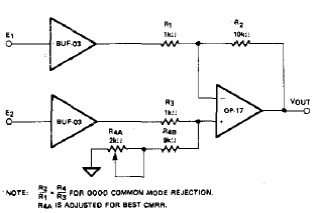

High Speed Instrumentation Amplifier (CB4940E)

Details: Written by: Newton C. Braga

This amplifier, found in a 1980s documentation, should be powered by a symmetrical source. Modern equivalent amplifiers may be used. The setting is for CMRR.
