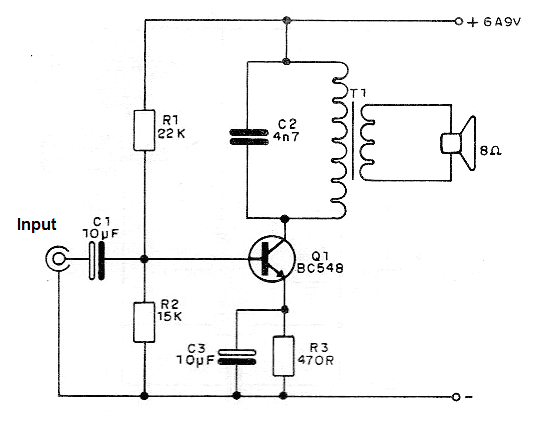

This low Power output stage can source a fraction of watt to a small loudspeaker. The transformer is a type found in old transistor radios with 100 to 1 k ohm primary impedance. The circuit can be used in experimental radios and intercom. R2 can be changed to find the best performance of the circuit.
