Instrumentation Amplifier (CB4926E)

Details: Written by: Newton C. Braga

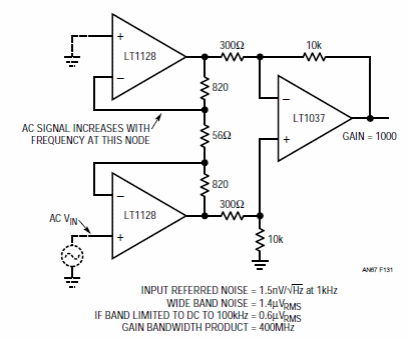

Using the LT128 and LT1037 from Linear Technology this circuit has a 400 MHz gain x bandwidth product and ultra low noise. The circuit has 1000 gain and must use symmetrical power supply.
