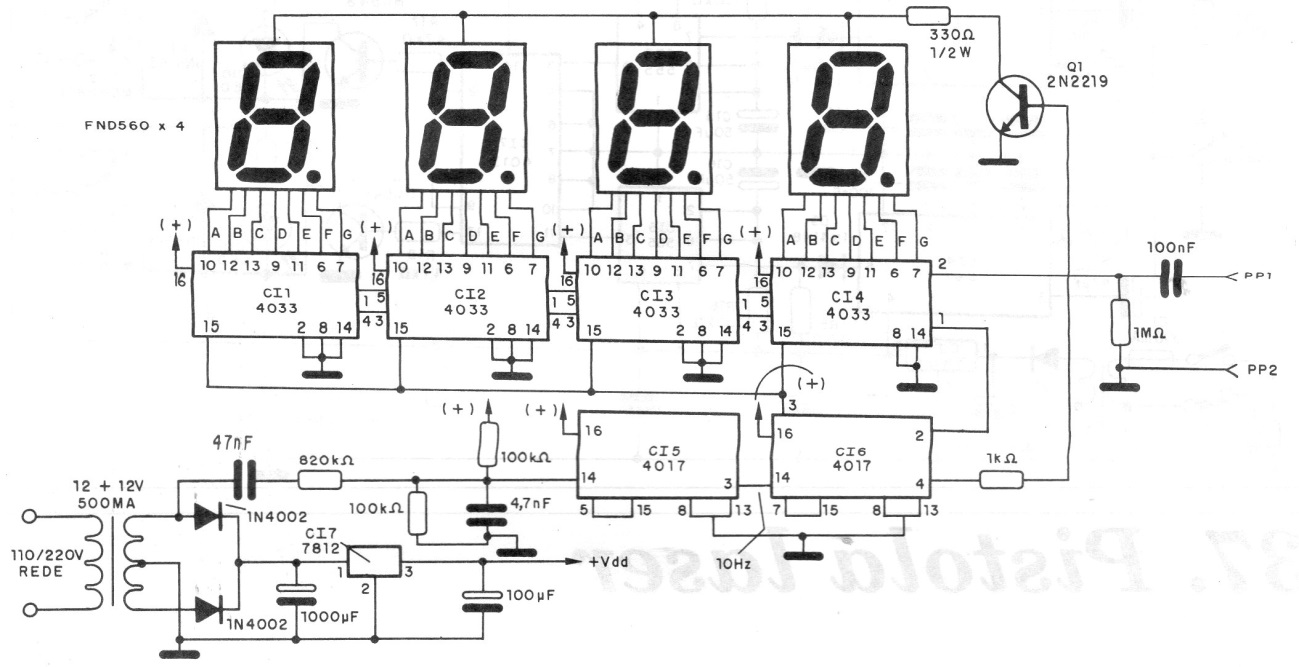

This simple digital frequency meter using CMOS circuits reaches 5 MHz frequency. Input signals are rectangular and common anode displays. The circuit includes the source, but a trigger circuit must be used if signals of shapes other than square are applied to the input.
