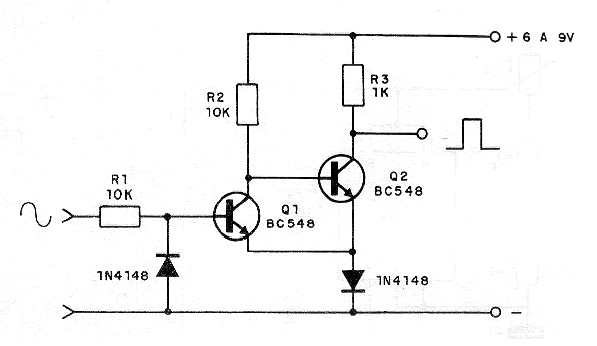

Sine signals are converted into square signals by this simple circuit. The maximum frequency is about some megahertz and the circuit can be powered from 6 to 9 V sources. Components can be change to find the best performance.
