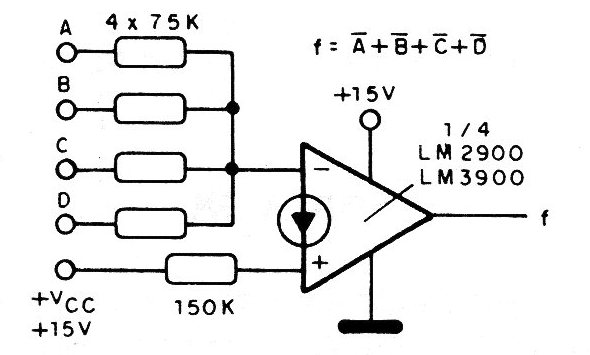

In the figure we have the amplifier application in a NOR gate, with reference voltage equal to the supply voltage. The power supply is simple and the input resistors determine the fan in capacity of the circuit.
In the figure we have the amplifier application in a NOR gate, with reference voltage equal to the supply voltage. The power supply is simple and the input resistors determine the fan in capacity of the circuit.
