2 W Amplifier (CB6162E)

Details
Written by: Newton C. Braga

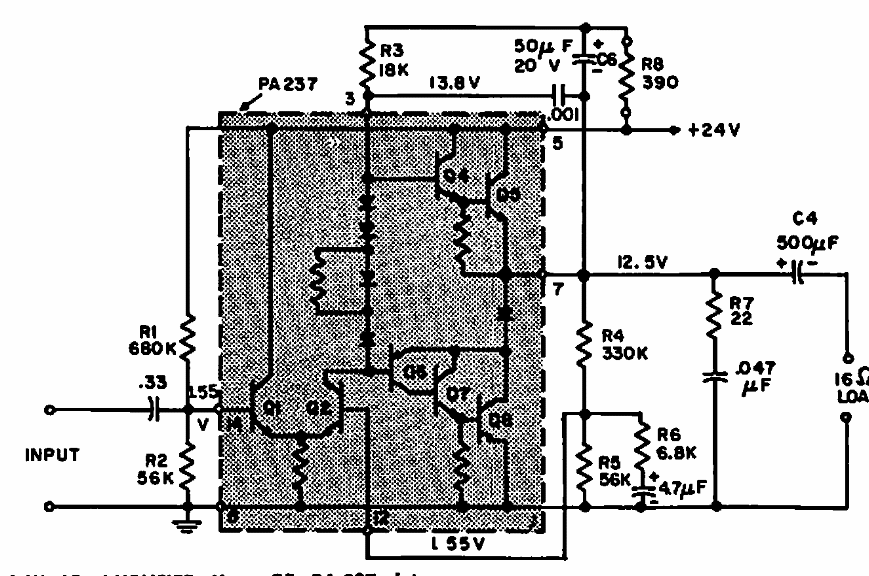

    Suggested by General Electric in a 1968 documentation this integrated amplifier uses a component of the era, the PA237. The circuit runs on 24 V and excites a 16-ohm speaker.




| Clique na imagem para ampliar |
