Circular Pattern Generator (CB5436E)

Details: Written by: Newton C. Braga

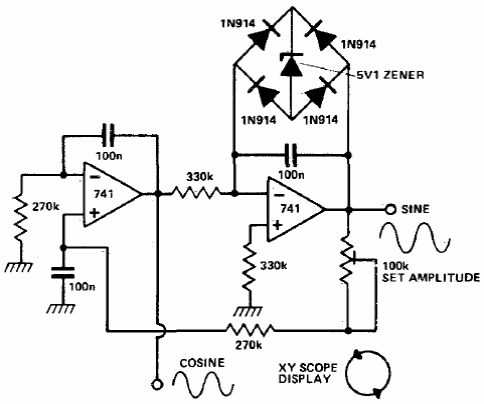

This circuit generates circles on the screen of an oscilloscope. The circuit is from old documentation, and the operational amplifiers should be powered by symmetrical 9 to 12 V.
