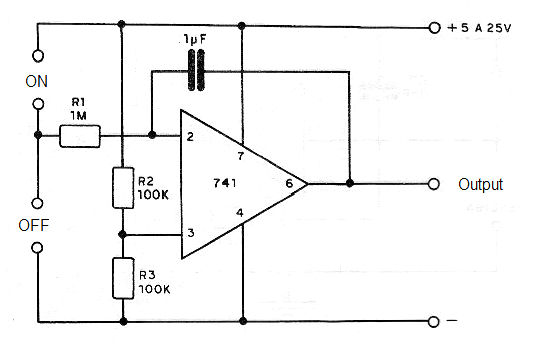

This circuit is triggered by the touch of the fingers on a sensor. The sensor is formed by two metal plates. The output current is about 20 mA. This current can be used to drive power stage with relays or other loads. The power supply can be made from sources of 5 to 25 V. Don´t use transformerless power supplies.
