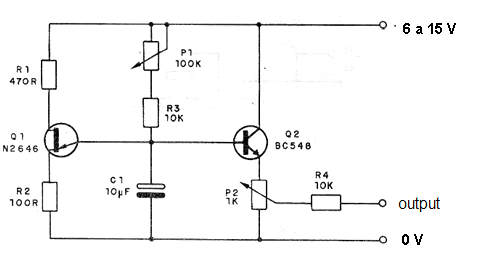

This circuit uses na Unijunction Transistor (UJT) to produce a modulation tone for several applications including telecom, test instruments and alarms. P1 adjusts the frequency. It also depends on C1. This capacitor can range from 10 nF to 10 µF according the desired frequency range. The circuit can be powered from sources between 6 and 15 V. Current drain is low.
