Missing Pulse Detector (CB6110E)

Details
Written by: Newton C. Braga

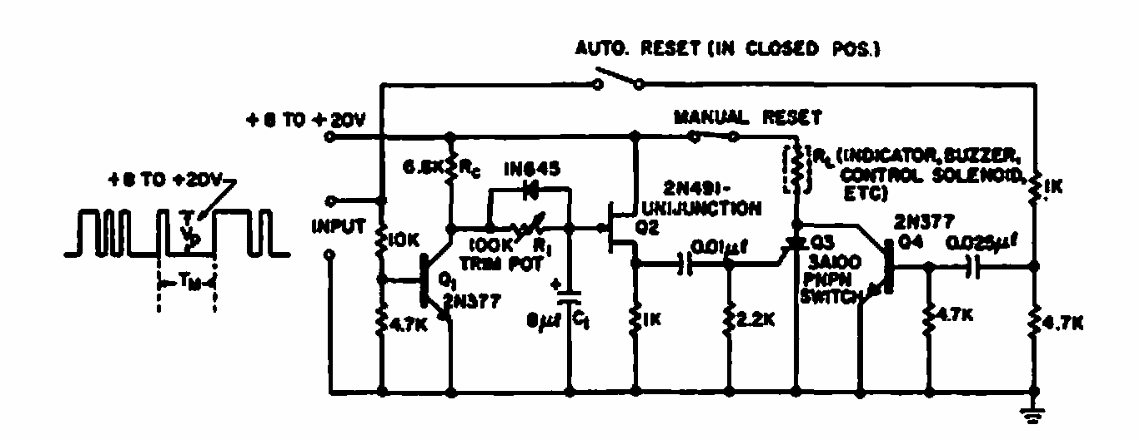

    This circuit is from 1964 documentation but can be easily implemented based on current components. Input waveforms and detection are shown next to the diagram.
