48V Low Side Current Sensor (CB5241E)

Details
Written by: Newton C. Braga

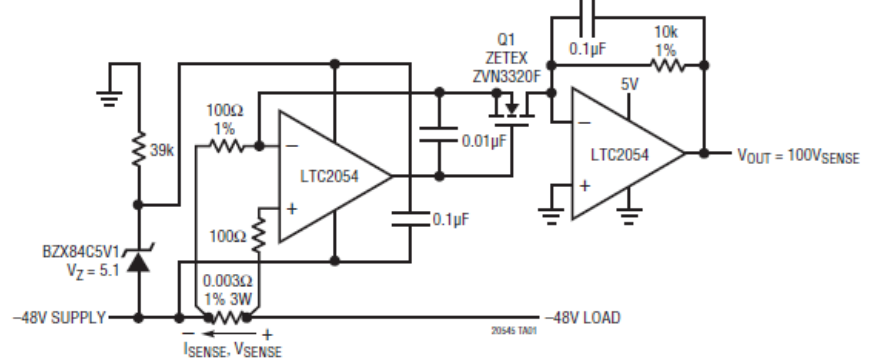

    Based on the Linear Technology LTC2054, this -48 V circuit was found in a 2005 manual. The circuit is powered with 5 V and can be used as a shield.
