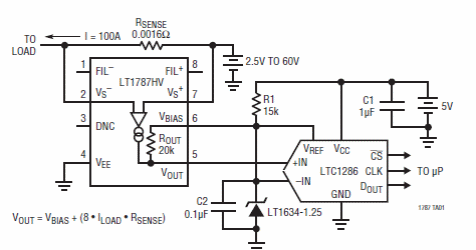

Found in a 2005 Linear Technology application manual, this circuit provides 12-bit resolution output directly to a microprocessor. The circuit must be powered by 5 V and for the load voltages from 2.5 to 60 V.
