Dimmer (CB5270E)

Details
Written by: Newton C. Braga

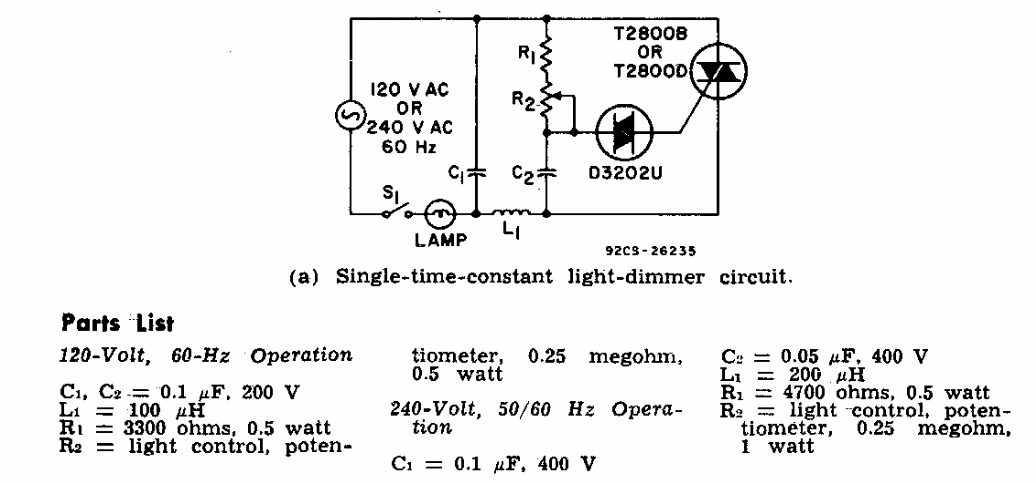

     This dimmer for incandescent lamps was obtained from an American 1990s documentation. The circuit accepts triac-like loads that can be virtually any type. Triac must be fitted with a heat sink.
