Dialing indicator (CB5995E)

Details
Written by: Newton C. Braga

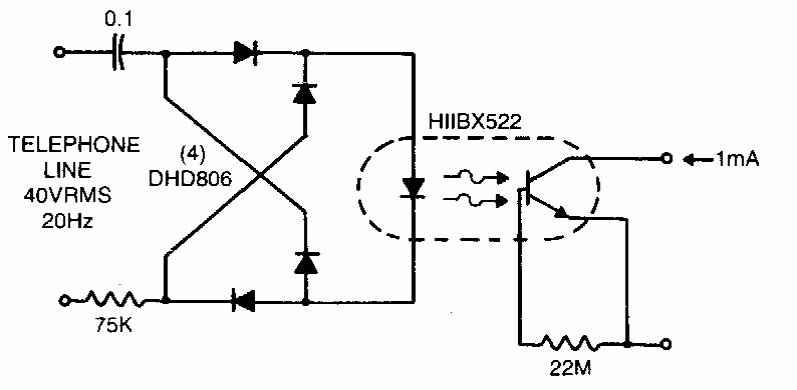

     This circuit provides a signal when dialing occurs. The circuit is powered by the telephone line voltage itself. We found it in an old documentation.




| Clique na imagem para ampliar |
