1 to 4 MHz CMOS Oscillator (CB5132E)

Details: Written by: Newton C. Braga

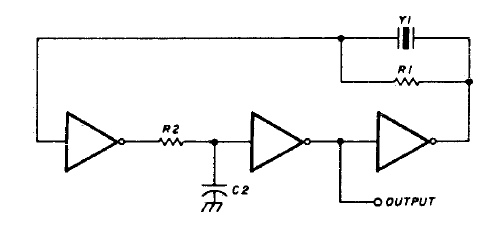

This circuit appears elsewhere on this site. The CMOS gate can be any one, including NAND and NOR gates connected as inverters. R1 values are between 1 and 5 MHz and R2 around 10 kHz.
