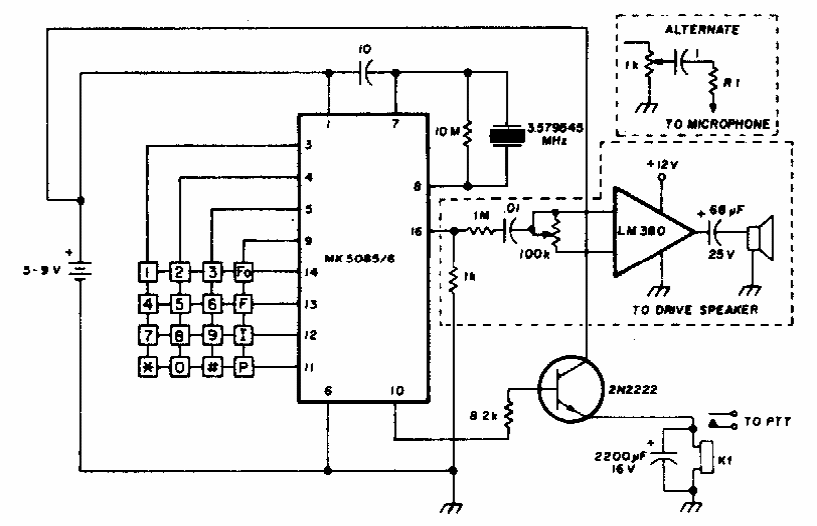

Dial Tone Generator (CB5984E)

Details
Written by: Newton C. Braga



     This circuit is from an old documentation making use of a 3,579,645 MHz analog color television crystal. The audio amplifier supports the equivalent.
