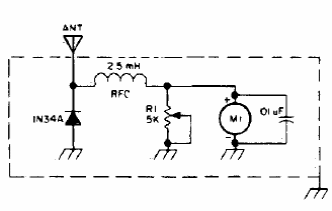

Field Strength Aperiodic Meter (CB5190E)

Details: Written by: Newton C. Braga

This circuit uses only passive components and the instrument can be a microammeter or the lowest current range of a standard multimeter. The antenna is telescopic.
