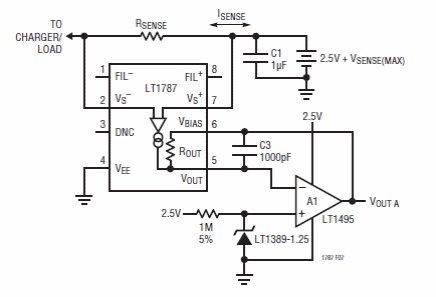

This circuit is from a 2005 Linear Technology publication. It converts current into load sensing voltages based on the LT1787. The power supply is 2.5 V allowing the circuit to function as a shield.
