Limit Alarm (CB5075E)

Details: Written by: Newton C. Braga

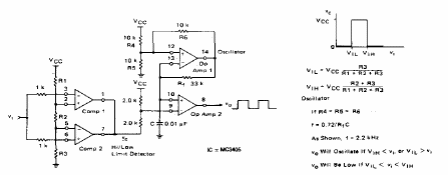

This limit alarm was found in a 1980s US documentation. Comparators can be equivalent and the formulas for calculating components are given along the diagram as well as the performance curve.
