5 W Darlington Amplifier (CB6177E)

Details
Written by: Newton C. Braga

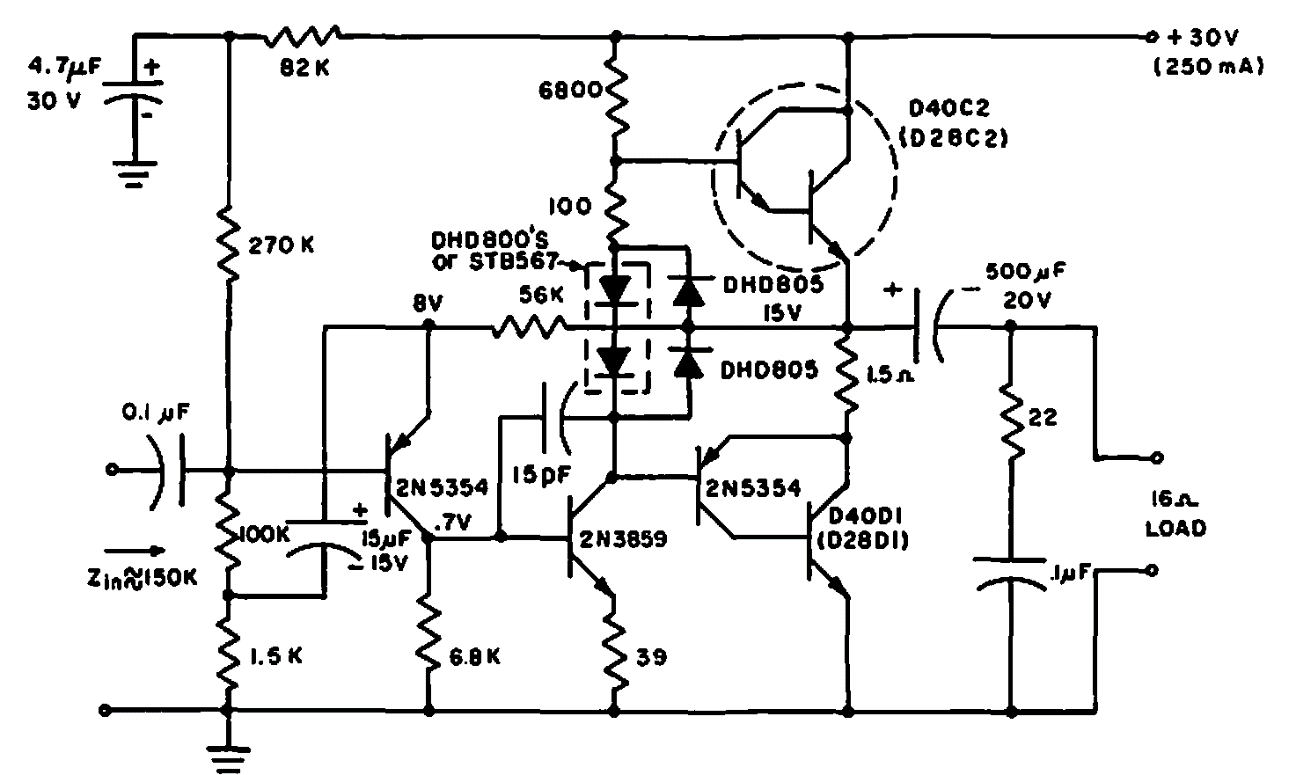

     We found this circuit in a 1969 General Electric documentation. The circuit uses transistors of the time and the diodes in the dotted board must be mounted on the output transistor heatsinks.




| Clique na imagem para ampliar |
