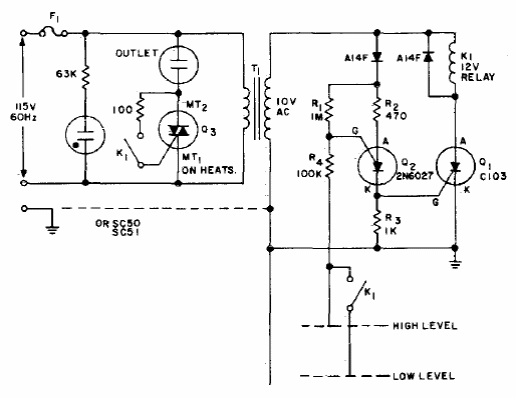

The purpose of this circuit is to maintain the liquid level of a reservoir between two values determined by the sensors. The circuit powers a pump through a triac. The SCR can be the TIC106. The circuit is from an 80's documentation.
Liquid Level Control (CB5311E)
- Details
- Written by: Newton C. Braga
