Gain 50 Current Sensor (CB5388E)

Details: Written by: Newton C. Braga

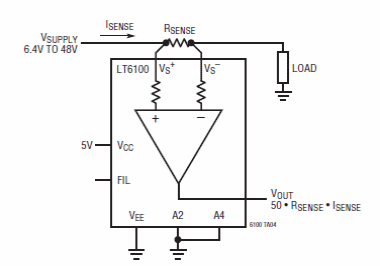

We found this simple gain-50 current sensing circuit in a 2005 Linear Technology publication. The circuit is based on the LT6100 and can operate on 6.4 to 48 V circuits.
