Signal Injector (CB5889E)

Details
Written by: Newton C. Braga

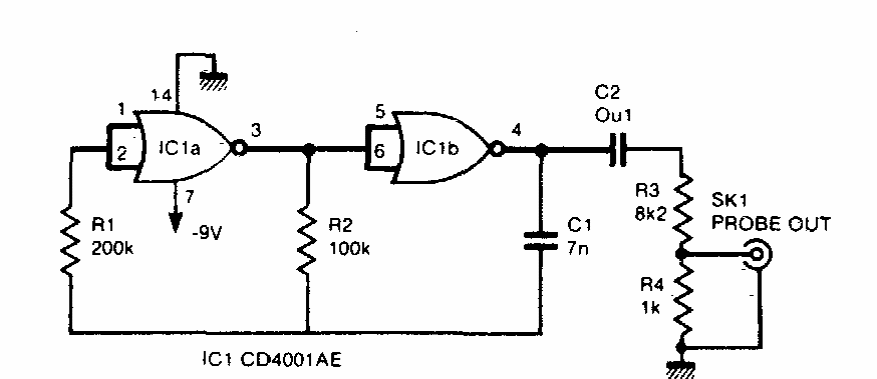

     This simple injector circuit can actually be powered by voltages from 3 to 9 V. The frequency is given by C1 which can be between 4.7 and 10 nF. The CMOS can also be 4011.




| Clique na imagem para ampliar |
