10 A NC Relay Shield (CB6015E)

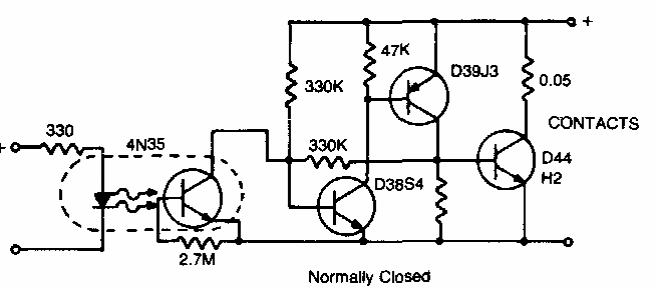

This 10 A solid state relay was found in a 1980s documentation. It can work as a shield and implemented with modern equivalent transistors.

| Clique na imagem para ampliar |

Logic Probes (CB11570E)
This circuit indicates the logical level of a CMOS circuit, extracting the power from the circuit...
Body Heat Detector (CB25684E)
Using a piezoelectric sensor of the time, this circuit was found in the February 1994 issue of...
Testing Diodes with the Oscilloscope (CB1488E )
The figure shows how to use an oscilloscope for diode test. The circuit presents the...
