RC Oscillator (CB5993E)

Details
Written by: Newton C. Braga



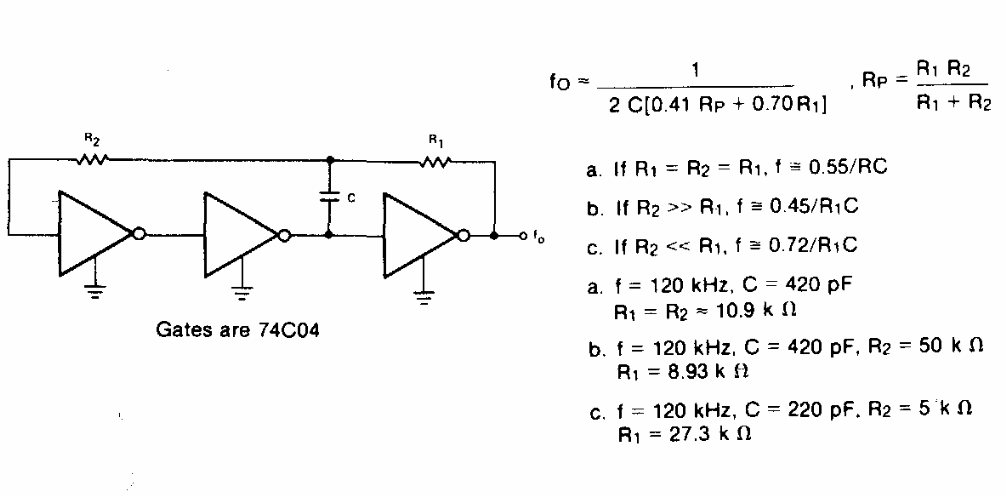

    In this oscillator circuit using 3 TTL inverters we have all the conditions for the frequency calculation. Power must be supplied with 5 V. The circuit is from an American TTL documentation.




| Clique na imagem para ampliar |
