Freezing Sensor (CB6048E)

Details
Written by: Newton C. Braga

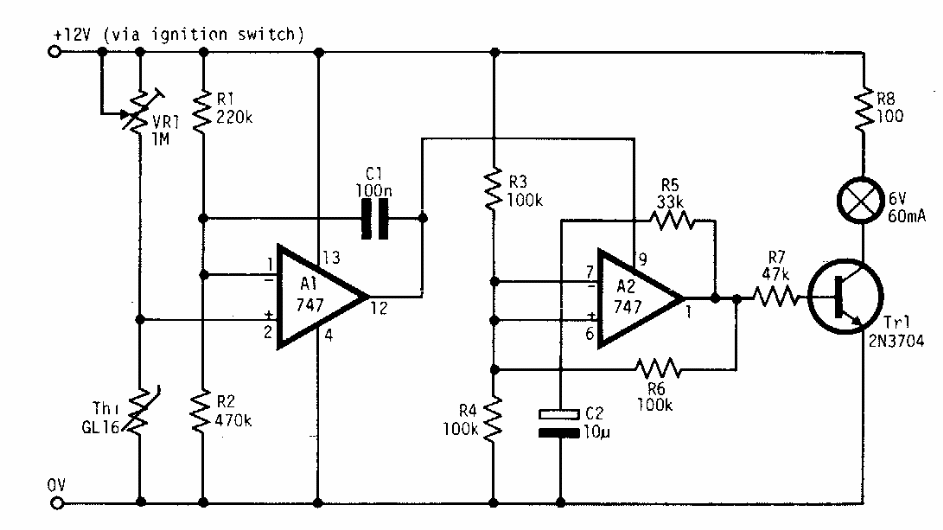

     This circuit was obtained from an 80's Electronic Engineering. The circuit detects ice formation by triggering a warning light. The operational amplifier is of the time.




| Clique na imagem para ampliar |
