Power Failure Alarm (CB6116E)

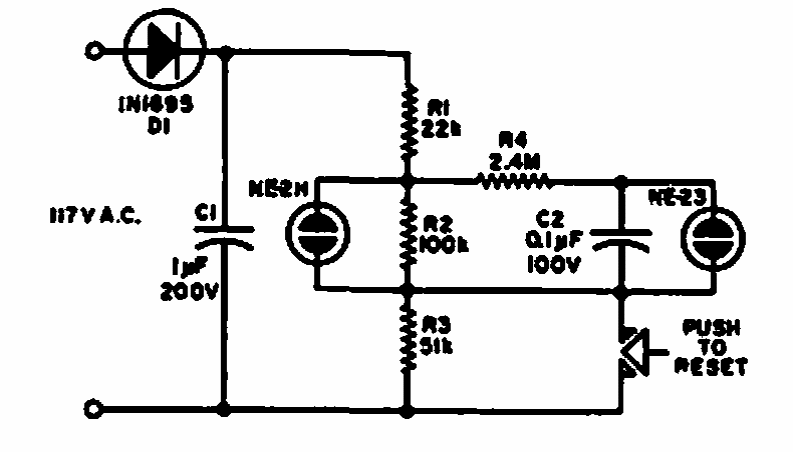

This circuit, suggested by an Electronics World of 1969, keeps a blinking LED for a while when a power outage occurs. Time depends on capacitor C1.

| Clique na imagem para ampliar |
