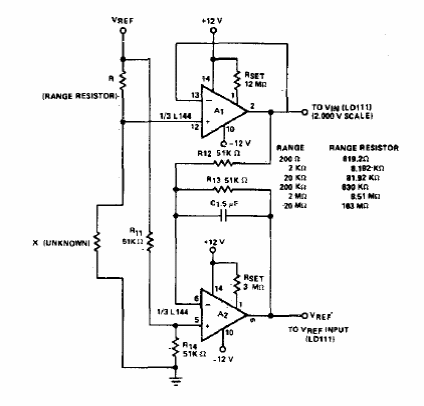

Resistance to voltage converter (CB5092E)

Details: Written by: Newton C. Braga

We found this circuit in an American 80's documentation. The circuit can be adapted to function as a shield. The operational of the time can be replaced by modern equivalents.
