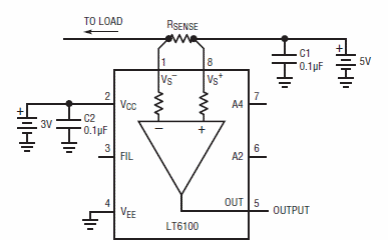

This circuit makes use of a Linear Technology LT6100 having been taken from the component datasheet itself. The circuit is for 5 V powered loads and can function as a shield.
