Colpitts Oscillator (CB6185E)

Details
Written by: Newton C. Braga

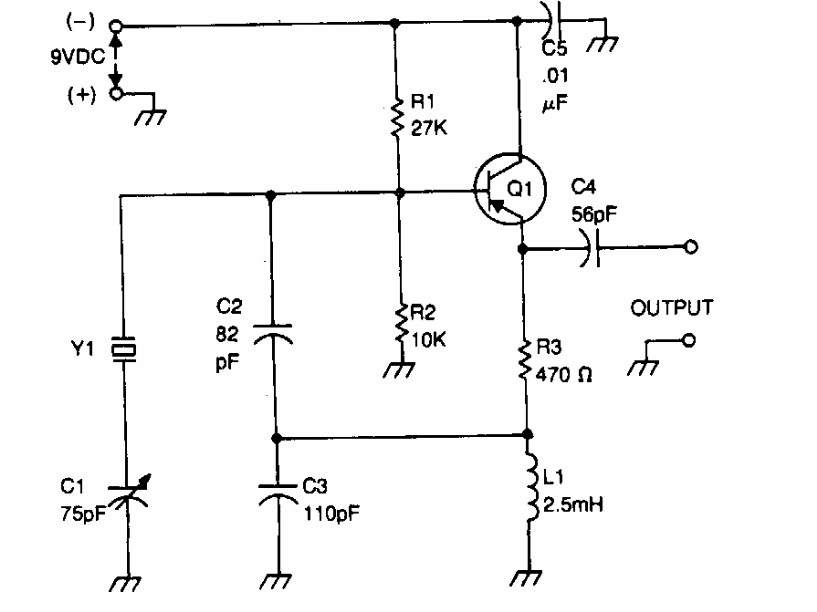

     This circuit was obtained from an American 1980s documentation. The frequency depends on the crystal and the circuit may be a PNP that reaches the generated frequency.
