16 W Amplifier (CB6168E)

Details
Written by: Newton C. Braga

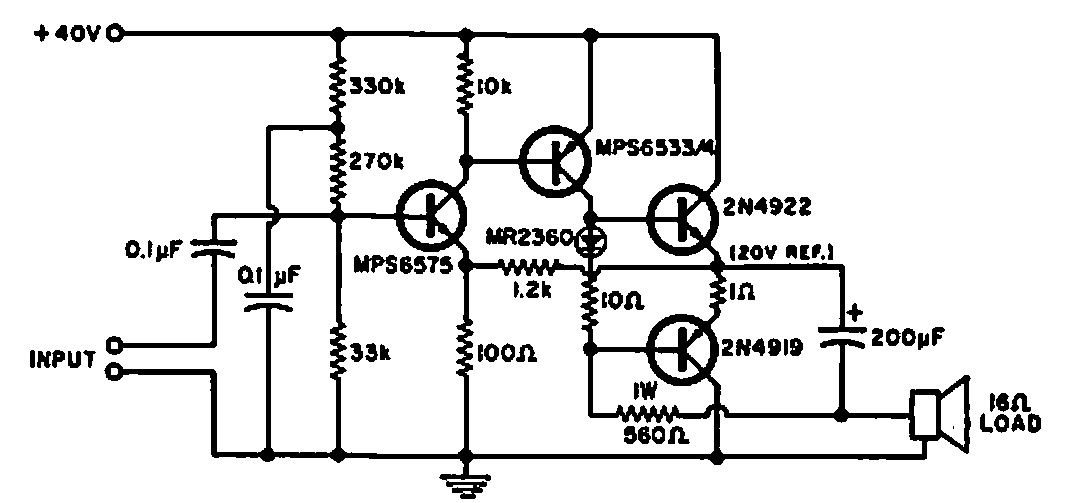

     This circuit is from an Electronics World of 1968. The transistors are of the time and the power is supplied with a voltage of 40 V. The circuit is high fidelity.
