SCS Basic Alarm (CB6081E)

Details
Written by: Newton C. Braga

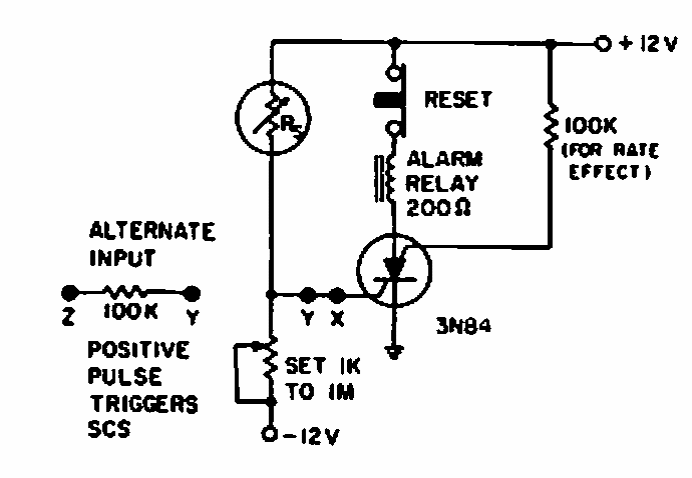

    This General Electric circuit was found in a 1964 documentation. The circuit triggers a relay when the sensor is activated. Trigger adjustment is done in a trimpot.
