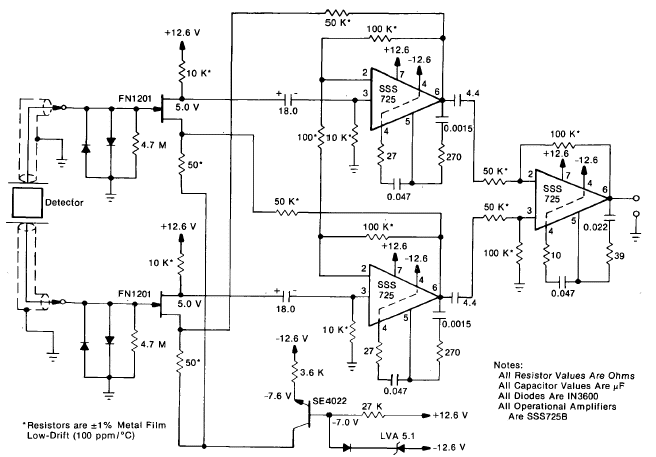

This low noise, low frequency instrumentation circuit was found in a 1976 NASA circuit manual. The circuit can be adapted to work with current components. The power supply must be symmetrical.




| Clique na imagem para ampliar |
