Picoammeter (CB6194E)

Details
Written by: Newton C. Braga

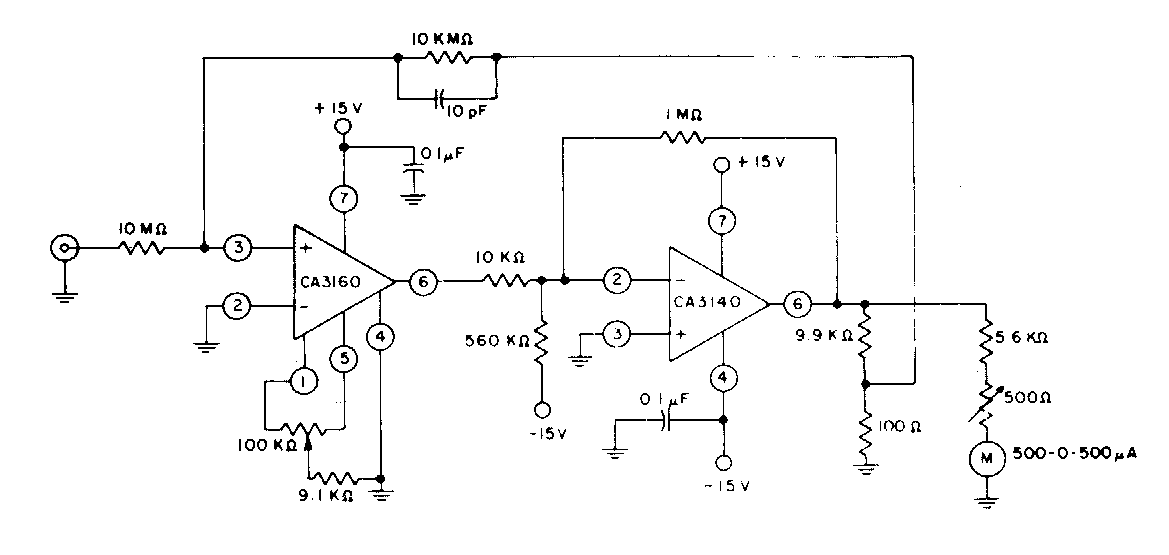

     This 80's General Electric circuit is guarded by the noise-guard for operating current. The circuit has an input sensitivity of 3 pA. The font must be symmetrical.




| Clique na imagem para ampliar |
