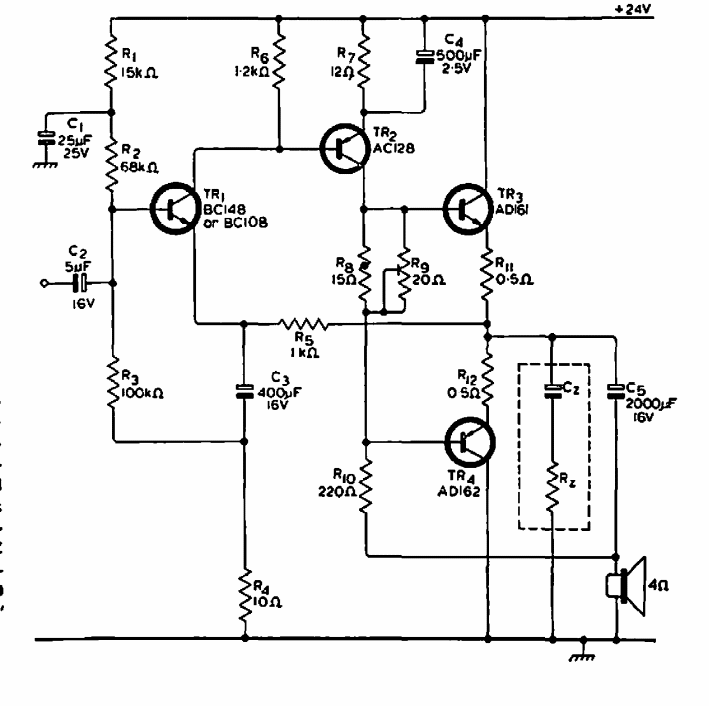

10 W Amplifier (CB6175E)

Details
Written by: Newton C. Braga



     This circuit is from Mullard documentation from 1969. Transistors support current equivalents. Output transistors must be mounted on heat sinks.
