Solar Charger (CB6057E)

Details
Written by: Newton C. Braga

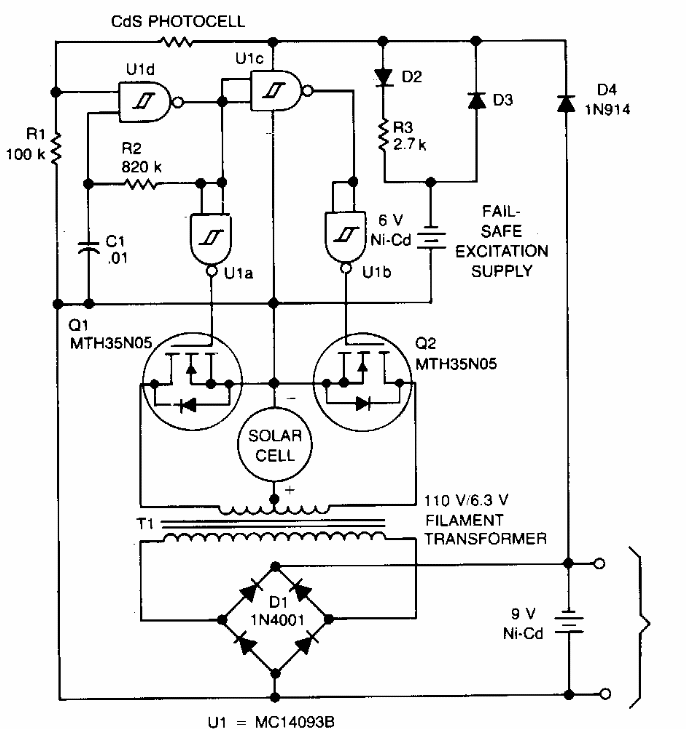

     Motorola suggests this circuit in an 80's documentation. The circuit uses an inverter to produce a higher voltage for 9 V battery charge from a single cell.
