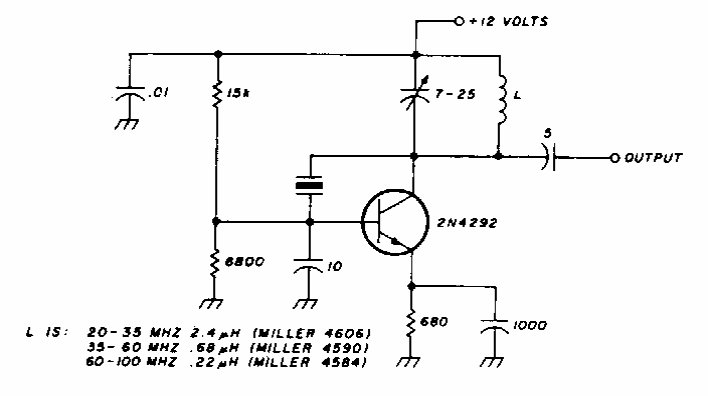

This circuit was found on an 80's Ham Radio. The transistor admits equivalent. The circuit can generate 20 to 100 MHz signals operating at the fifth harmonic of the crystal.
| Clique na imagem para ampliar |
Overtone Crystal Oscillator (CB6184E)
- Details
- Written by: Newton C. Braga
