Battery Step Up Switched Regulator (CB6065E)

Details
Written by: Newton C. Braga

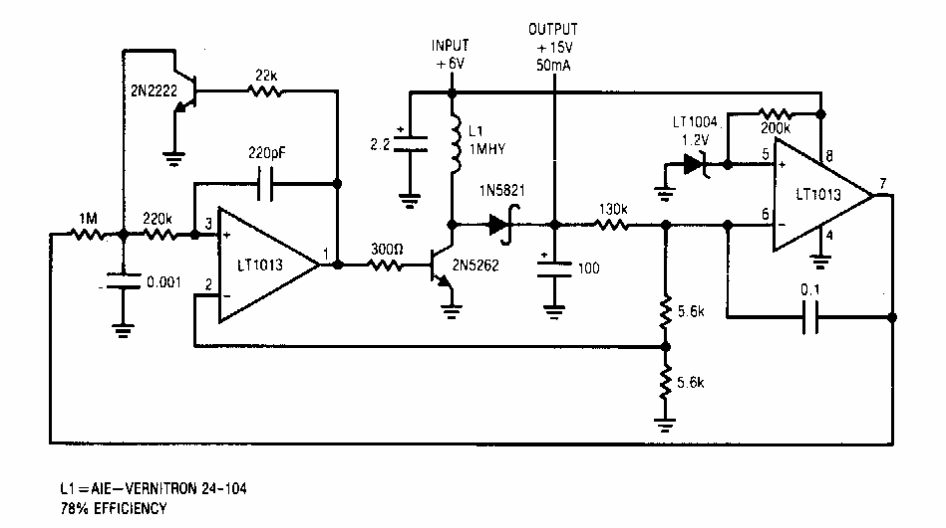

     This is a circuit suggested by Linear Technology in a 1980s documentation. The integrated circuit is from the era. Observe the input and output voltage.




| Clique na imagem para ampliar |
